    Performance:
    Corrosion resistance
    Driving mode:
    Manual
    Pump shaft position:
    Edge vertical type
    Material:
    Cast aluminum
    Flow:
    0-530 L/H m3/h
    Maximum supply gas pressure:
    1.2 Mpa
    Shaft power:
    0.37 kw
    Weight:
    16-20 kg
    Model:
    MM1

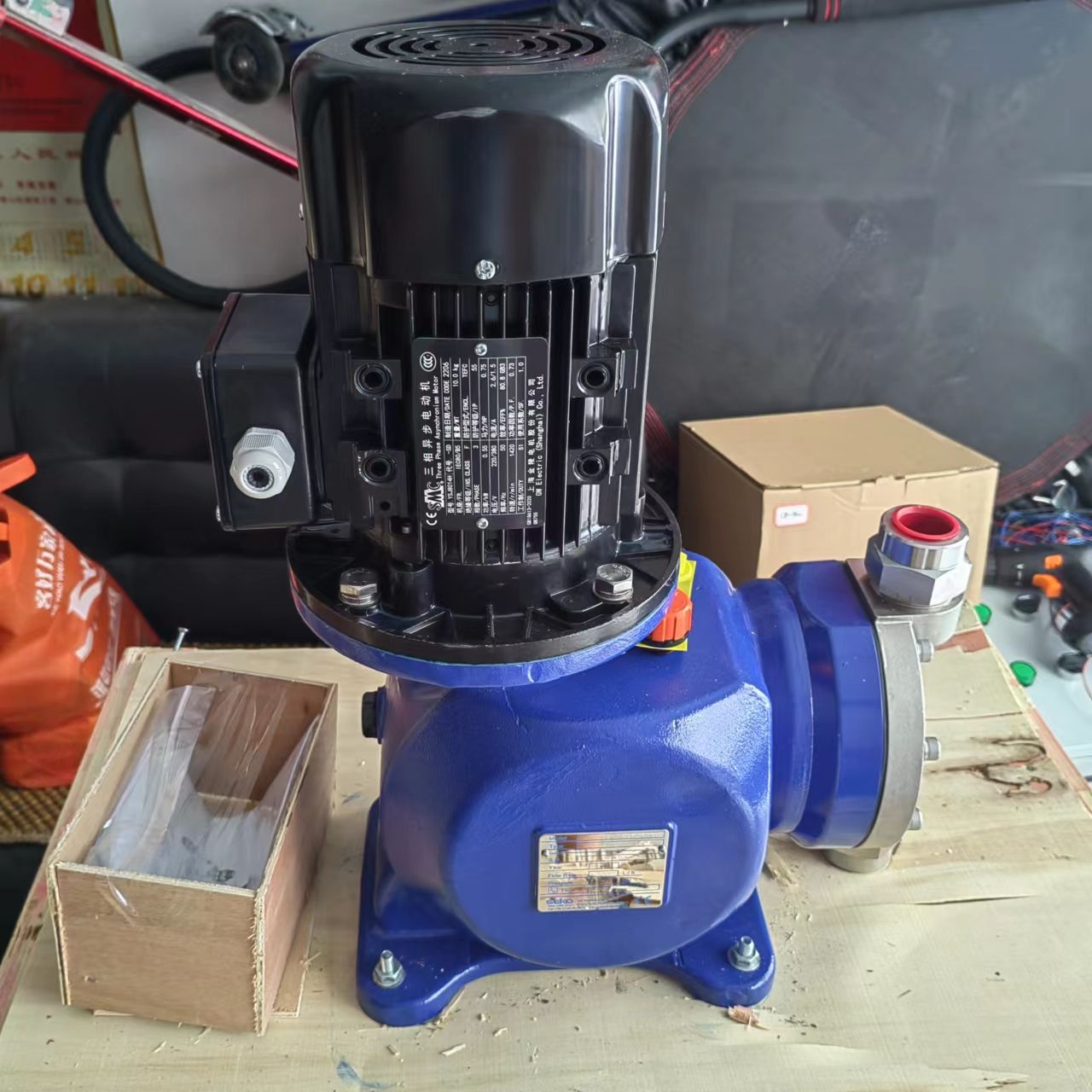

    SEKO motor drive metering pump MM1---Qingdao Chunyang Electronics Co., Ltd.
    KOSMO series MM1 mechanical reset diaphragm metering pump
    MM1 is a motor-driven metering pump with mechanical diaphragm contact and mechanical reset.
    Features:
    Flow range: 3-530 L/h
    Pressure: 5-12bar
    Stroke frequency: 58/78/116/156 beats/min
    Stroke length: 2/4, 6.4/7.4 mm
    Diaphragm diameter: 65/96/124/140 mm
    Motor power: 0.25/0.37KW
     Pump head material: PVC,SS316L stainless steel, PVDF
    Medium temperature: 0-40℃
    SEKO motor-driven metering pump MM1 Technical parameters:
    In addition to the standard motor standard for the SEKO motor-driven metering pump MM1, customers can also choose variable frequency motors and explosion-proof motors.
    The above flow rate is measured under the condition that water is the medium, the temperature is 20℃, and the motor power is 50HZ. If the motor power is 60HZ, the corresponding flow rate is calculated by 1.2 times.
